WLD-UV1325 UV FLATBED PRINTER


WLD-UV1325 UV FLATBED PRINTER apply Skeleton triangle welding technology, nozzle collision protection, Bi-direction printing technology, "cellular" adsorption platform, water cooling system.



Can be equipped with Japan Epson 3.5 picoliter DX7, DX5 printhead

3.5PL ink drop size

1440 fine orifices

Print images comparable to photo levels

24 hours of continuous printing



Can be equipment with Ricoh GH2220 3.0 picoliter printhead

Industrial grade nozzles are low in price

3.0PL nozzle size picture is more delicate

Fast printing speed

Service life of up to 30 billion

Grayscale control gradient is more natural

WLD-UV1325 UV FLATBED PRINTER

Buyer's Country Name Telephone Product Type Transaction Date
Oman Ahmed 968 *** 9390 EPS-WLD-UV6090 11/14/2018
Australia Martin 0416 *** 775 EPS-WLD-UV4590 09/18/2018
Australia Peter 7 3*** 4652 EPS-WLD-UV2232 11/20/2018
Colombia Hernán Ro*** 322***2715 WLD-UV3040 09/25/2018
India Ankur Gu*** 098***8829 WLD-UV2513 11/26/2018
HongKong Daniel W*** 852 *** 6408 WLD-UV2232 11/29/2018
Ukraine com***tion LLC 380-9***1720 WLD-UV1325 11/30/2018
USA Adam R*** '+173***0151 WLD-UV1313 12/12/2018
Mongolia DUDU*** 976-***9350 WLD-UV6090 Cylinder Print 12/15/2018
Ecuador Mr. MARCELO M*** 593-***9195 WLD-UV4590 Cylinder Print 12/26/2018
Ecuador Mr. Romeo N*** 593-***3024 G-WLD-UV3040 12/17/2018
Switzerland Ella M*** 41-453-***8764 WLD-UV6090 12/18/2018
Switzerland Karl Fri*** 41-5***3211 WLD-UV2513 12/18/2018
USA Mrs. Happi N*** 1-973***5711 WLD-UV1313 12/19/2018

Distinguishing Features

HIWIN brand guide rails, high durability and precision, optional THK rail

Large lifting range, small head is stable, beam accuracy is 0.01

Ricoh adopts compressed water cooling technology, which has good heat dissipation effect and prolongs the service life of LED lamps.

Model Type WLD-UV1325
Nozzle configuration   GH2220 industrial nozzle 1-16  Japan epson micro piezoelectric nozzle 1-2
Maximum print size 1300mm×2500mm/4*8'
Print speed Ricoh gh2220:Eight nozzles sketch model 45m2/H production 28m2/h High quality pattern 6m2/h
Epson:Two nozzles sketch model 10m2/H production 6m2/h High quality pattern 3m2/h
Print material Type:Acrylic, aluminum plastic board, wood, tile, foam board, metal plate, glass, cardboard and other plane objects
Thickness: 0 mm - 120 mm/0-5" Uniform weight: 25kg Maximum size: 1300mm x 2500mm/4*8'
Ink type Blue, magenta, yellow, black, light blue, light red, white, light oil
The UV lamp LED curing light, 20000 hours long use cooling water/air cooling
RIP software PhotoPrint,Monteiro,Ultraprint;Microsoft Windows2000/XP/WIN7
Power supply voltage,power     110-220 - v 50 to 60 hz 700 w to work; Adsorption of motor of 1500 w
Image format     Tiff,JEPG,Postscript3,EPS,PDF Etc.
Color control Comply with ICC standard, have curve and density adjustment function.
Print resolution     720*360dpi,720*720dpi,360*1080dpi,720*1080dpi,720*1440dpi,1440*1440dpi
Operating environment Temperature: 20 ℃ to 35 ℃   humidity: 30% to 80%
Apply the ink  LED-UV ink, solvent ink, textile ink
The machine size L 3150mm X W 2410mm X H 1120mm  390KG
Packing size L 3250mm X W 2510mm X H 1220mm   510KG

Butt Welding Technology
Thanks to butt welding technology, the machine frame is strong, preventing deformation, even under extreme temperatures and rough transportation, as well as operating stress.



Industrial rail

HIWIN brand rail with high duration and great precision. Option of THK industrial rail is available.

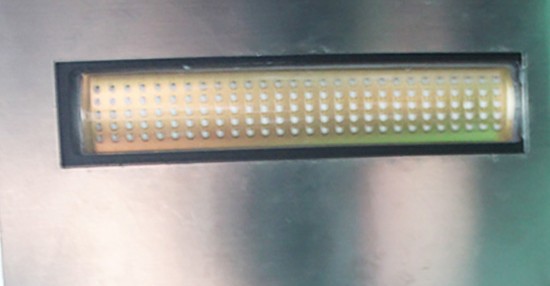

Imported Led Lamp

Due to the use of an advanced LED-UV curing technology, our UV flatbed printers require no preheating, and are capable of operation as soon as they are turned on. Further, the low-heat consumption of the LED-UV lamps feature a service life of 20,000-30,000 hours under normal operation, reducing additional lamp replacement costs.



Integral, stable beam

The beam is with Large lifting range and the small head is stable. Beam accuracy is 0.01 mm.



Negative Pressure Control System
With the assistance of a 0.01PA high-precision negative pressure control system, the print head prints smoothly and evenly. It also features a stable performance when printing at high speeds or working for long periods of time. In addition, a constant temperature system inside the secondary ink cartridge guarantees a consistent color and printing quality, even in different temperature environments.



Water cooling system

With Ricoh compressed water cooling technology, the machine has a good heat dissipation and the Led is of long service time.

As a medium format printer, the WLD-UV1325 UV flatbed printer has a 1.3 x 2.5m bed that allows for printing on a variety of materials, including acrylic, aluminum composite panels, wooden boards, ceramic tiles, foam boards, metal plates and paper. It is capable of printing characters as small as 3pl, quickly and with a smooth ink supply. Compared to traditional industrial printers, the flatbed printer also provides both white ink and color ink printing, increasing the printing efficiency.

Logo, Sign Packaging, Gift promotion, Customized items Interior decoration Leather 3C products, Household appliances Crafts, Prize
Logo, Sign Packaging, Gift promotion, Customized items Interior decoration Leather 3C products, Household appliances Crafts, Prize
No. Item Unit Discription Warranty Function Price
1 Printhead Pcs   No
2 Jet board Pcs   No
3 Mainboard Pcs   No
4 DX7 damper
 with  nut
Pcs   No
5 DX5 damper with
 drawin gear
Pcs   No
6 180
Grating belt
Pcs   No
7 180 Grating
reading head
Pcs   No
8 Optical fiber (6M) M   No
9 Printhead cable Pcs   No
10 Capping Pcs   No
11 3W Ink pump Pcs   No
12 5N Electromagnet Pcs   No
13 Big Doctor-bar Pcs   No
14 X-axis motor Pcs   No
15 Z-axis driver Pcs   No
16 Red relay Pcs 24V No
17 Common relay Pcs 220V No
18 Power supply Pcs   No
19 Belt Pcs   No
20 Y-axismotor Pcs   No
21 Y-axis driver Pcs   No
22 Led lamp Pcs   No
23 Small filter Pcs   No
24 Front and back up and down the inductor Pcs   No
25 Origin TP02 Pcs   No

Price description
For the above items, there are some consumable parts and some Non vulnerable parts, if you need the exact price, please feel free to contact our sales.



Attention
If you have bought our company printers, in order to avoid the printhead and the mainboard damage because of some wrong operation, you should install the printhead correctly in operation and maintenance according to the following way. And refer to the instructions, or under the guidance of the professional engineers operation.



1. In the process of printing appear garbled or crash phenomenon

Check whether the optical fiber is in good condition;Check whether the nozzle flat wire is in good condition;Check the mainboard DB signal to the servo drive signal for poor contact and damage phenomenon;Check whether the USB cable is well connected or is damaged, replacement of computer USB interface;Check whether the machine computer in good condition according to the standard ground.

2. The phenomenon of broken appeared in the process of printing ink

Check whether ink sac leakage cause ink flow;Check whether there is a tiny fiber materials such as adhesion in the nozzle surface;Check whether the environment temperature is too high

3. Print out the ink

Check whether the card to normal electricity, nozzle flat wire is properly connected;Check for ink ink sac;Optical fiber are in good condition

4. Water ripples to appear on the printed image

At this time should immediately stop printing, completely clean spray car guide rail and spray car bearing.If problem still, please local agent send professional skill
